What Are the Models and Specifications of Hammer Sand Making Machines?

1. Economical PC Hammer Sand Making Machine



The PC hammer sand making machine is a small and medium - sized sand - making device. It is shaped like a "snail", so it is also known as a snail crusher. This sand - making machine has a small volume and a compact structural design. It has no grate bar design and can crush materials with a moisture content of 8%. Material blockage rarely occurs. It is often used in some small and medium - sized sand and gravel plants and stone plants.

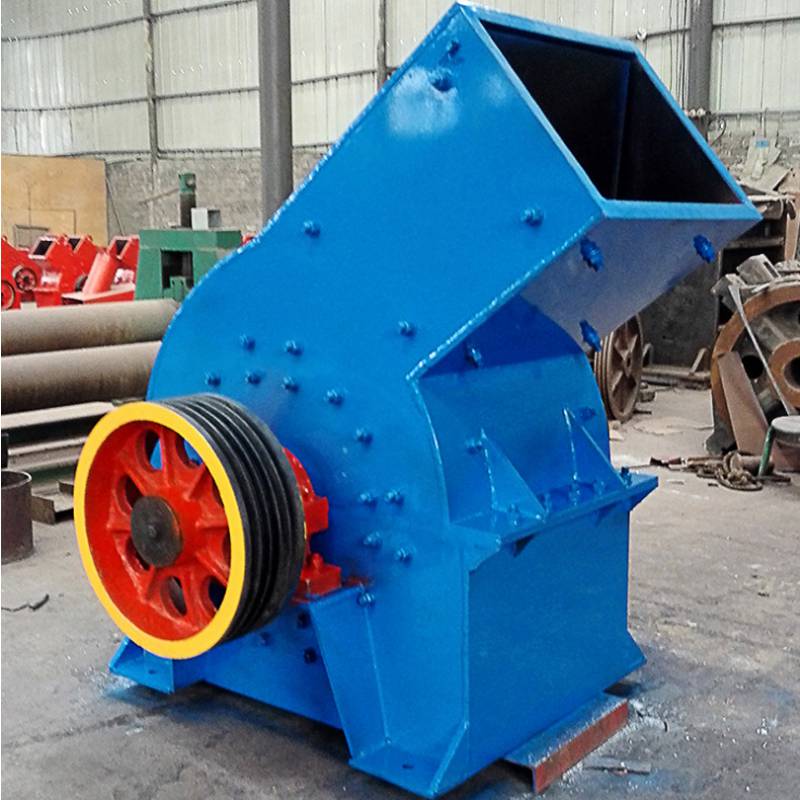

PC Hammer Sand Making Machine

PC Hammer Sand Making Machine Model Parameter Specifications



Specification	Processing Capacity (t/h)	Motor Power (kw)
PC 400×300	3 - 10	4P 11
PC 600×400	6 - 22	4P 22
PC 800×600	10 - 40	4P 55
PC 1000×800	15 - 50	4P 75
PC 1000×1000	18 - 75	4P 90
PC 1200×1200	22 - 95	4P 132



Note: The output will vary depending on factors such as different materials and feed particle sizes.

2. High - Yield PCZ Heavy Hammer Sand Making Machine



The PCZ heavy hammer sand making machine is an upgraded version of the PC hammer sand making machine. It has achieved an upgrade in structural features, and its crushing strength and force have also been enhanced. According to different equipment model sizes, it can fully meet the output requirements ranging from 60 - 3000 t/h. It can form products in one - step, eliminating the need for secondary crushing and shaping processes, which can save 45% of costs. It is energy - saving and cost - effective with low investment.

Heavy Hammer Sand Making Machine

PCZ Heavy Hammer Sand Making Machine



Model	Rotator Diameter × Length (mm)	Feeding Port (Length × Width) (mm)	Optimal Feed Particle Size (mm)	Processing Capacity (t/h)	Motor Power (kw)	Overall Dimensions (Length × Width × Height) (mm)
PCZ1308	Φ1330×790	870×780	≤380	60 - 160	132	2880×2130×2390
PCZ1410	Φ1400×1000	1060×740	≤450	80 - 210	2×90(160)	2830×2100×2485
PCZ1610	Φ1600×1000	1090×930	≤480	100 - 230	2×132	3370×2415×2750
PCZ1612	Φ1600×1200	1340×1140	≤500	120 - 350	2×160	3370×2613×2750
PCZ1615	Φ1600×1500	1570×1140	≤550	200 - 550	2×200	3370×2925×2750
PCZ1716	Φ1700×1600	1420×1200	≤600	400 - 850	2×250	3520×3000×3210
PCZ1720	Φ1700×2000	2030×1200	≤650	500 - 1000	2×400	3670×3390×3330
PCZ1920	Φ1900×2000	1980×1210	≤750	800 - 1500	2×500	4490×3910×3600
PCZ2225	Φ2200×2500	2530×1610	≤1000	1500 - 3000	1250	4890×5010×4560



Note: The output will vary depending on factors such as different materials and feed particle sizes.

3. Intelligent Mobile Hammer Sand - Making  Machine Integrated Unit(Mobile Hammer Sand - Making Machine Integrated Unit)

The mobile hammer sand - making machine integrated unit belongs to the mobile crushing station series. It has a mobile chassis that can overcome any harsh production environment, is equipped with an intelligent control system, and has a complete production line configuration (feeder, vibrating screen, hammer sand - making machine). One device can easily achieve crushing and sand - making operations. It is flexible, convenient to use, and does not require complex construction. The operation is simple, and it can save costs in labor, site, transportation, etc.
